Products > Product details

ErgoRacks™ Ori Bar Bracket System

The ErgoRacks™ Ori Bar Bracket System is a simple but effective solution for piecing together and marking up drill core samples. Designed to attach to our ErgoRacks™ roller racking*, it provides the convenience of completing your core orientation process at the roller rack, with your core tray within easy reach.

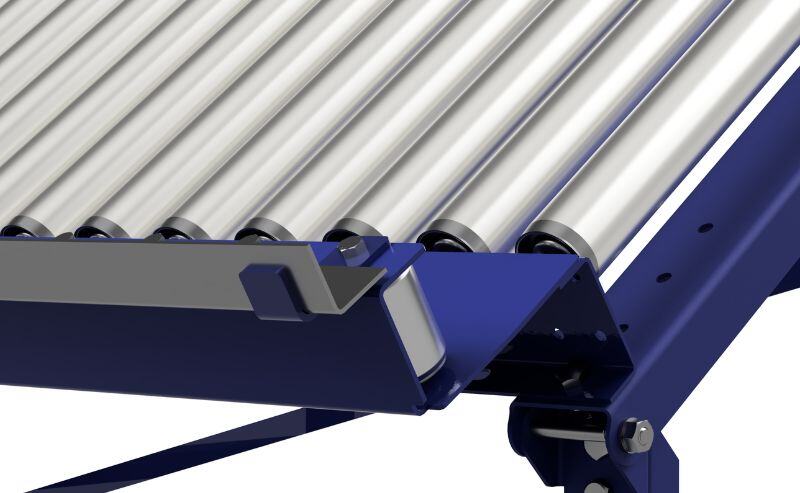

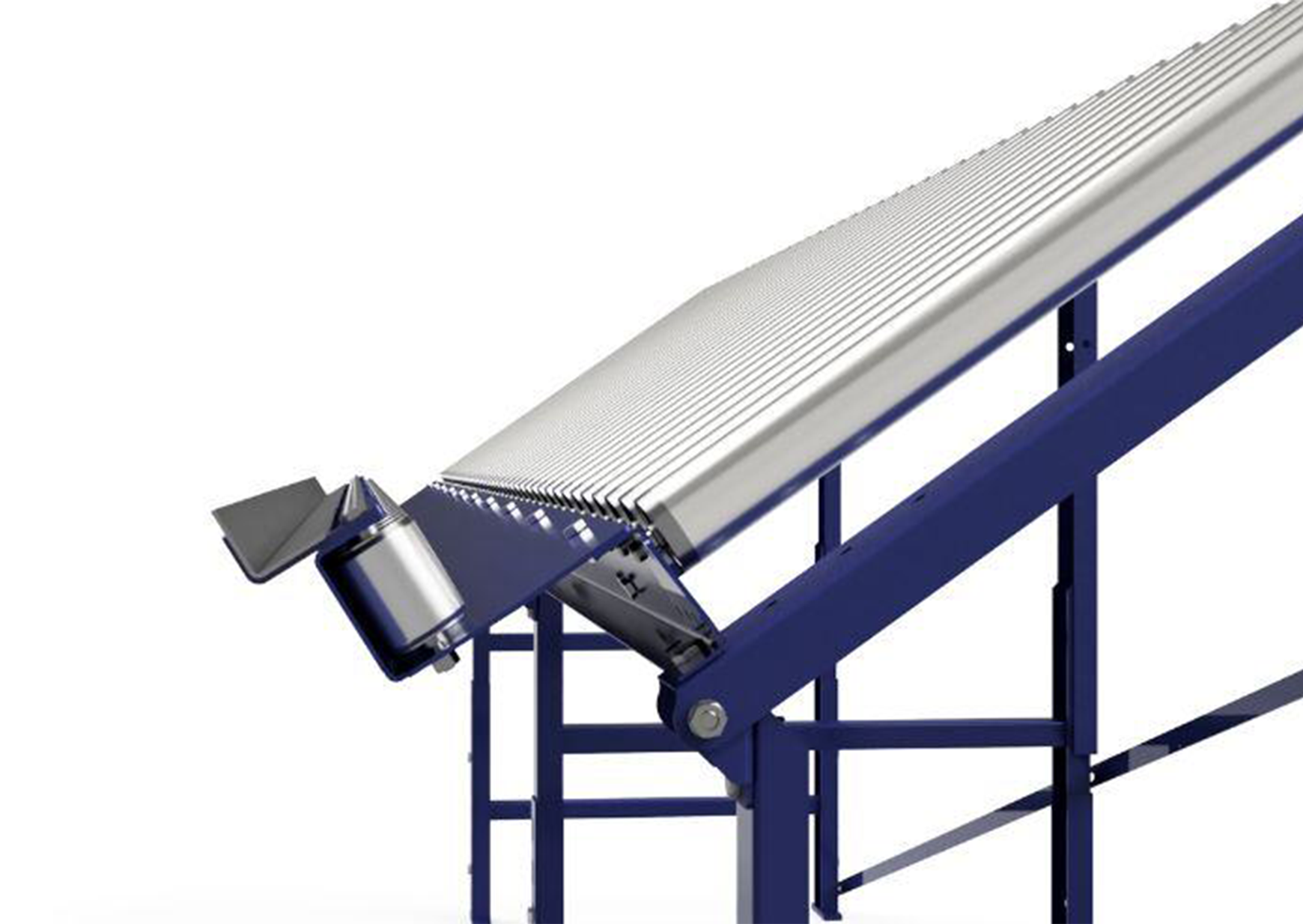

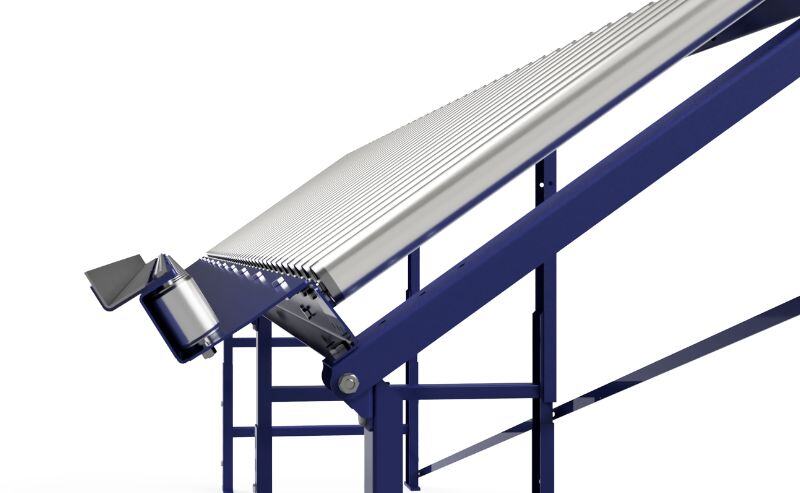

The image above shows the standard 3m ErgoRacks™ Roller Rack fitted with 5 Ori Bar Brackets on the bottom of the AR channel, supporting a length of 40 x 40mm Steel Angle.

The 40 x 40 x 3m Steel Angle is recommended for use with the Ori Bar Bracket.



* The Ori Bar Bracket is only compatible with the ErgoRacks™  Angle Racking Main Assembly (ARMAK). It is not compatible with the ErgoRacks™ Angled Racking Ramp Kit (ARRK-3M).

Code Available sizes Unit Ctn Qty Stock status Choose size

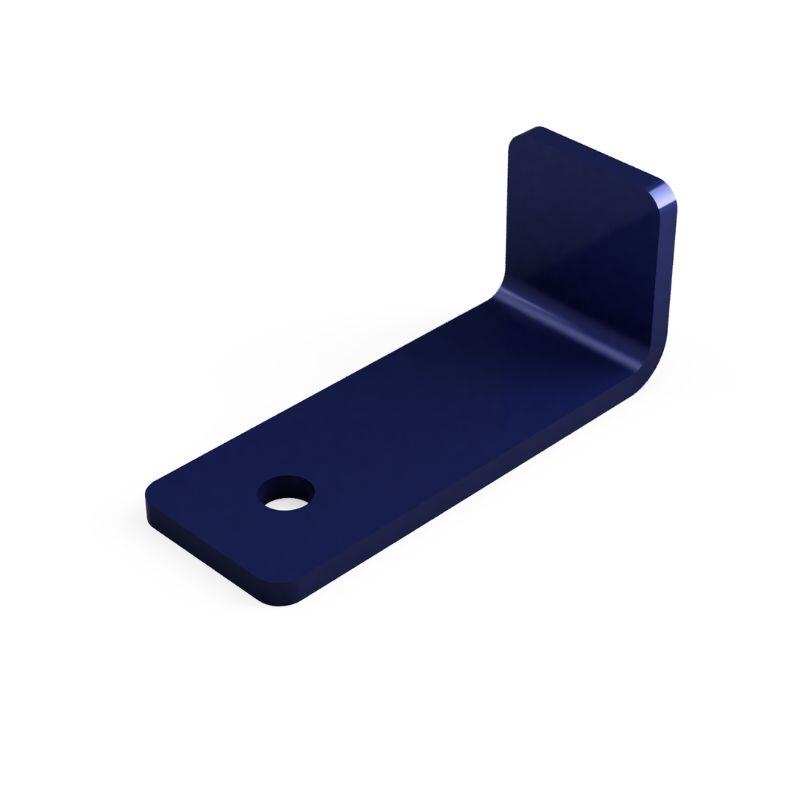

AR-ORBKT-S10 Ori Bar Bracket - 5 x Ori Bar Brackets required per 3m of ErgoRacks™ roller racking * EACH 1 In stock Add To Quote
ANGLE40403 Discoverer® 3m Long Galvanised Ori Angle EACH 1 Manufactured to Order Add To Quote

* The Ori Bar Bracket is only compatible with the ErgoRacks™  Angle Racking Main Assembly (ARMAK). It is not compatible with the ErgoRacks™ Angled Racking Ramp Kit (ARRK-3M).

Code Available sizes
AR-ORBKT-S Ori Bar Bracket - 5 x Ori Bar Brackets required per 3m of ErgoRacks™ roller racking *
Unit: Each QTY: 1 In stock
Add To Quote
ANGLE40403 Discoverer® 3m Long Galvanised Ori Angle
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
